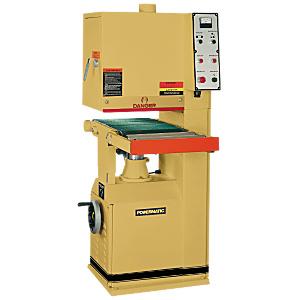

1632 Open End Belt Sander, 5HP 1PH 230V

1791250

Powermatic

The 16" Open-End Sander has front mounted controls and a load meter, which maintains a constant check during operation. Metal-tipped safety limiters inside the machine will stop the sander immediately should belt breakage occur. The combination head means a more consistent finish, and pneumatic conveyor belt tracking keeps belts automatically centered.

Quick Overview


  • Part Number: 1791250


  • Working Width (Reversing Stock): 16 (32) "


  • Working Thickness: 5 "


  • Minimum Board Length: 13¾ "


  • Head Configuration: Combination


  • DRO: n.a.


  • Belt Speed: 2200 sfpm


  • Belt Size: 17 x 54 "


  • Compressed Air Requirements @ 5 atm: 75 psi


  • Dust Port Outside Diameter: 4 "


  • Dust Collection Minimum CFM Required: 800 cu.ft/min


  • Motor Power: 5 HP


  • Motor Voltage: 230 V


  • Motor Phase: 1 Ph


  • Feed Motor Power: ¼ HP


  • Feed Motor Phase: 1 Ph


  • Web Description: 1632 Open End Belt Sander, 5HP 1PH 230V


  • Model Number: 1632


  • Brand: Powermatic


  • Overall Dimensions: 40 x 29 x 66


  • Height: 66 inch


  • Width: 29 inch


  • Length: 40 inch


  • Net Weight: 996 pound
Interested in this item or want more information?

Hours:

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Details


  • The combination head promotes a more consistent finish


  • Pneumatic conveyor belt tracking keeps belt centered


  • Conveniently mounted load meter maintains constant check during operation


  • Limiters will stop sander instantly if belt breakage occurs


  • Side access door for easy belt changes


  • Standard Equipment:


  • 5HP motor


  • Emergency rail stop


  • Emergency stop button


  • Dust collection port


  • 17" x 54" sanding belt

    • Additional Information

    Manufacturer: Powermatic
    For More Information on the 1632 Open End Belt Sander, 5HP 1PH 230V, [Click Here] to Link to Manufacturer Web Site
