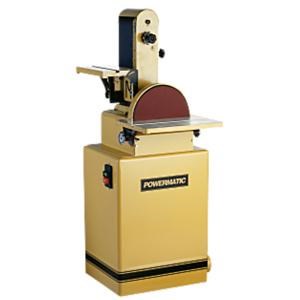

31A 6" x 48" Belt, 1.5HP, 1Ph, 115V/230V, Manual Switch

1791291K

Powermatic

Loaded with features, the 31A from Powermatic can tackle the most demanding tasks. Full cast iron construction allows both metal and woodworking to be done on the same machine and the Integral Dual Dust Port keeps both belt and disc portions clean, extending abrasive life. The articulating table mounted on the 6" x 48" belt sander head can be used vertically, horizontally, or angled to accommodate diverse jobs. The belt head has an indexing pin with stops at 0, 45° and 90° and the head lock allows use at any angle in-between. Removing the top guard allows contour sanding and the cast iron tables with miter gauge slots and positive stops make set-up fast, accurate, and simple for any angle.

Quick Overview


  • Part Number: 1791291K


  • Style: Combination Belt/Disc


  • Base Size (L x W x H): 20 x 17 1/4 x 27 1/2 "


  • Table Working Height: 34 " disc, 36 " belt


  • Sanding Arm Locking Positions: 0 °, 45 ° and 90 °


  • Belt Size (L x W): 48 x 6 "


  • Belt Speed: 2410 sfpm


  • Belt Table Size (L x W): 13 1/4 x 7 1/2 "


  • Belt Table Tilt: 45 ° down


  • Disc Diameter: 12 "


  • Disc Speed: 2375 RPM


  • Disc Table Size (L x W): 17 1/4 x 9 "


  • Disc Table Tilt: 15 ° up, 45 ° down


  • Dust Port Outside Diameter: 4 "


  • Dust Collection Minimum CFM Required: 400 cu.ft/min


  • Motor Power: 1½ HP


  • Motor Voltage: 115 / 230 V


  • Prewired Voltage: 115 V


  • Wiring Remarks: Push button switch


  • Motor Current: 14 / 7 A


  • Motor Phase: 1 Ph


  • Model Number: 31A


  • Brand: Powermatic


  • Overall Dimensions: 24 x 31-1/4 x 54-1/2


  • Height: 54.5 inch


  • Width: 31.25 inch


  • Length: 24 inch


  • Net Weight: 247 pound
Interested in this item or want more information?

Hours:

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Details


  • Multi-position belt head locks at any angle from 0° to 90°; includes indexing pin for 0, 45°, and 90° stops


  • Belt and disc tables are precision ground cast iron with miter slots


  • Belt table tilts down to 45°, and can be set for beveled and mitered angle sanding


  • Full cast iron platen with solid crowned aluminum drums for smooth sanding belt movement and support


  • 12" disc is balanced for flat, even coverage

    • Additional Information

    Manufacturer: Powermatic
    For More Information on the 31A 6" x 48" Belt, 1.5HP, 1Ph, 115V/230V, Manual Switch, [Click Here] to Link to Manufacturer Web Site
