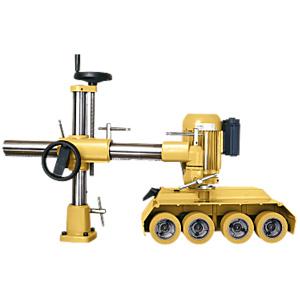

PF-41 Powerfeeder, 1HP, 1Ph, 115V, 4-Speed, 4 Wheel

1790812K

Powermatic

These rugged, heavy-duty stock feeders feature continuous-duty motors that transfer power from the gear box to the feed roller through the roller chain and sprockets, providing superior positive feeding for all types of materials. The fully adjustable support columns feature moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions. Solid cast iron construction of bodies, bases and universal joints provide stability with vibration-free feeding. The smart roller system provides money-saving wheel changes by allowing the replacement of the tire only, not the complete assembly as on other units

Quick Overview


  • Part Number: 1790812K


  • Number of Speeds: 4 speeds


  • Range of Speeds: 13, 36, 43, 108 FPM


  • Feed Rate: variable


  • Movement - Vertical: 9.83 "


  • Movement - Horizontal: 18.07 "


  • Column Diameter: 2.28 "


  • Rollers: 4 3/4 x 2 1/4 "


  • Distance Between Rollers - Center to Center: 5.23 - 5.93 - 5.00 "


  • Maximum Height of Rollers Parallel to Tabletop: 8.45 "


  • Rotation: Forward/Reverse


  • Swing: 360 °


  • Motor Power: 1 HP


  • Motor Voltage: 115 V


  • Motor Phase: 1 Ph


  • Model Number: PF-41


  • Brand: Powermatic


  • Overall Dimensions: 43.23 x 23.58 x 29.48


  • Height: 29.48 inch


  • Width: 23.58 inch


  • Length: 43.23 inch


  • Net Weight: 150 pound
Interested in this item or want more information?

Hours:

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Details



  • Roller chain and sprockets provide positive feeding for a variety of work


  • Support column is fully adjustable for horizontal, vertical or angled feeder position


  • Feeder body, column base and joints are cast iron for heavy duty operation


  • Rollers can be changed out easily and quickly
  • Additional Information


    Manufacturer: Powermatic
    For More Information on the PF-41 Powerfeeder, 1HP, 1Ph, 115V, 4-Speed, 4 Wheel, [Click Here] to Link to Manufacturer Web Site
