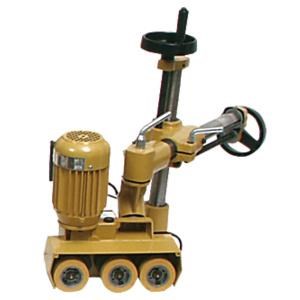

PF3-JR, 3-Wheel Stock Feeder, 1/4HP, 1PH, 115V

1790818

Powermatic

This rugged, heavy-duty stock feeder features a continuous-duty motor that transfers power from the gear box to the feed roller through the roller chain and sprockets, providing superior positive feeding for all types of materials. The fully adjustable support column features moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions. Solid cast iron construction of body, base and universal joints provides stability with vibration-free feeding. The roller system provides money-saving wheel changes by allowing the replacement of a single roller, instead of a complete set.

Quick Overview


  • Part Number: 1790818


  • Number of Speeds: 4 speeds


  • Range of Speeds: 13, 26, 33, 62 FPM


  • Movement - Vertical: 6.52 "


  • Movement - Horizontal: 9 4/5 "


  • Column Diameter: 1 3/5 "


  • Rollers: 3 1/8 " x 1 3/16 "


  • Distance Between Rollers - Center to Center: 4.32 - 3.34 "


  • Maximum Height of Rollers Parallel to Tabletop: 6 "


  • Rotation: Forward/Reverse


  • Swing: 360 °


  • Motor Power: ¼ HP


  • Motor Voltage: 115 V


  • Motor Phase: 1 Ph


  • Model Number: PF3-JR


  • Brand: Powermatic


  • Overall Dimensions: 27.5 x 11.8 x 23.2


  • Height: 23.2 inch


  • Width: 11.8 inch


  • Length: 27.5 inch


  • Net Weight: 71 pound
Interested in this item or want more information?

Hours:

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Details



  • Roller chain and sprockets provide positive feeding for a variety of work


  • Support column is fully adjustable for horizontal, vertical or angled feeder position


  • Feeder body, column base and joints are cast iron for heavy duty operation


  • Rollers can be changed out easily and quickly
  • Additional Information


    Manufacturer: Powermatic
    For More Information on the PF3-JR, 3-Wheel Stock Feeder, 1/4HP, 1PH, 115V, [Click Here] to Link to Manufacturer Web Site
