1285 3HP, 3Ph, 230V/460V (Prewired 230V), Helical Head

1791308

Powermatic

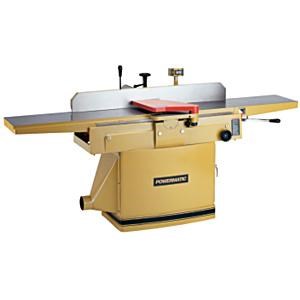

This 12" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard three-knife cutterhead or the solid steel Helical cutterhead. The helical system makes fast work of knife changing and never needs adjustment.

Quick Overview

  • Part Number: 1791308

  • Cutting Capacity (W x D): 11 3/4 x 3/4 "

  • Cutterhead Speed: 5000 RPM

  • Number of Knives (Helical/Standard): 42 two-sided inserts (30 x 12 x 2mm) with 2 rabbeting inserts

  • Standard Knife Size (L x W x T): 30 x 12 x 2 mm

  • Table Height: 31½ "

  • Table Size (L x W): 84 x 12 "

  • Fence Size (L x H): 47 x 5 1/2 "

  • Fence Tilts: 45 ° left, 45 ° right

  • Fence Positive Stops: -45 °, 45 ° and 90 °

  • Dust Port Outside Diameter: 6 "

  • Dust Collection Minimum CFM Required: 800 cu.ft/min

  • Motor Power: 3 HP

  • Motor Phase: 3 Ph

  • Motor Voltage: 230 / 460 V

  • Prewired Voltage: 230 V

  • Model Number: 1285

  • Brand: Powermatic

  • Overall Dimensions: 89.5 x 28 x 39

  • Height: 39 inch

  • Width: 28 inch

  • Length: 89.5 inch

  • Net Weight: 812 pound
Interested in this item or want more information?

Hours:

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

  • Helical cutterhead with 2-sided carbide inserts for fast knife changes with no adjustments

  • Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play

  • Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments

  • Large 84" x 12" table surface for heavy-duty work

  • Table "lips" on both sides of cutterhead aid in noise reduction

  • Full size rabbeting ledge supports large workpieces for rabbets up to 3/4" deep

  • 3HP motor provides plenty of power

  • Standard Equipment:

  • Cutterhead guard

  • Heavy duty fence

  • Dust port

  • Push blocks

  • Tool kit

    • Additional Information

    Manufacturer: Powermatic
    For More Information on the 1285 3HP, 3Ph, 230V/460V (Prewired 230V), Helical Head, [Click Here] to Link to Manufacturer Web Site
