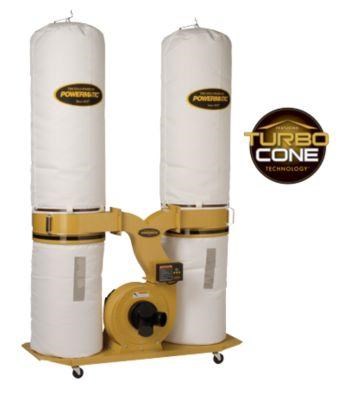

PM1900TX-BK1 Dust Collector, 3HP 1PH 230V, 30-Micron Bag Filter Kit

1792071K

Powermatic

The PM1900 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive TurboCone™ improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. The canister filter offers over six times the filtering area of standard filter bags, collects 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Multiple connection port capability makes this machine a central dust collection system for the entire woodworking shop. Four swivel casters and conveniently located handles allow for easy mobility.

Quick Overview

  • Part Number: 1792071K

  • Trademark: TurboCone

  • Remote Control: Yes

  • Sound Rating: 86 - 92 dB

  • 1-Hose Connection Diameter: 8 "

  • 2-Hoses Connection Diameter: 4 "

  • 3-Hoses Connection Diameter: 4 "

  • Bag Diameter: 20 "

  • Filter Bag/Canister Length: 48 "

  • Collection Bag Capacity: 10 cubic foot

  • Collection Bag Length: 30 "

  • Air Flow @ 4": 234 cu.ft/min

  • Air Flow @ 8": 1,754 cu.ft/min

  • Static Pressure: 11.31 inch of water

  • Particle Size (Micron): 96% of 30 micron particles

  • Velocity @ 4": 5,200 foot per minute

  • Air Inlet: (1) at 8" or (3) at 4"

  • Impeller Diameter: 14 "

  • Impeller Fins: 7

  • Impeller Material: steel

  • Separator Tank Diameter: 20 "

  • Separator Tank Height: 10 "

  • Motor Power: 3 HP

  • Motor Phase: 1 Ph

  • Motor Voltage: 230 V

  • Prewired Voltage: 230 V

  • Motor Current: 15 A

  • Web Description: PM1900TX-BK1 Dust Collector, 3HP 1PH 230V, 30-Micron Bag Filter Kit

  • Model Number: PM1900TX-BK1

  • Brand: Powermatic

  • Overall Dimensions: 46 x 23 x 28 (shipped), 61 x 30 x 94 (assembled)

  • Height: 28 inch

  • Width: 23 inch

  • Length: 46 inch

  • Net Weight
Interested in this item or want more information?

Hours:

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

  • TurboCone improves chip separation and collector bag packing efficiency

  • The cone eliminates premature filter clogging for sustained performance

  • Remote-controlled digital timer can be programmed for up to 99 minutes

  • All-metal duct construction for rigidity and improved air flow

  • 30-micron filter bags for improved capture of fine dust particles

  • The large impeller is powered by a 3HP motor for peak performance

  • Triple 4” dust ports allow for several hoses to be attached at the same time

  • Cloth collection bags with view window use a snap ring for rapid installation/removal

  • 10 cubic feet collection bag capacity reduces number of bag changes.

  • Tall filter bags require less cleaning due to the larger surface area

  • Four swivel casters for easy maneuverability

    • Additional Information

    Manufacturer: Powermatic
