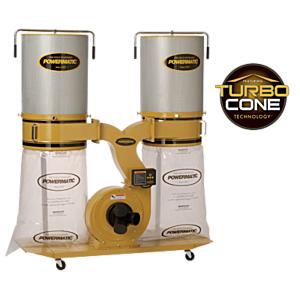

PM1900TX-CK1 Dust Collector, 3HP 1PH 230V, 2-Micron Canister Kit

1792072K

Powermatic

The PM1900 Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.

Quick Overview

  • Part Number: 1792072K

  • Trademark: TurboCone

  • Remote Control: Yes

  • Sound Rating: 86 - 92 dB

  • 1-Hose Connection Diameter: 8 "

  • 2-Hoses Connection Diameter: 4 "

  • 3-Hoses Connection Diameter: 4 "

  • Bag Diameter: 20 "

  • Filter Bag/Canister Length: 26 "

  • Collection Bag Capacity: 10 cubic foot

  • Collection Bag Length: 30 "

  • Air Flow @ 4": 236 cu.ft/min

  • Air Flow @ 8": 1,782 cu.ft/min

  • Static Pressure: 11.31 inch of water

  • Particle Size (Micron): 98% of 2 micron particles: 86% of 1 micron particles

  • Velocity @ 4": 5,200 foot per minute

  • Air Inlet: (1) at 8" or (3) at 4"

  • Impeller Diameter: 14 "

  • Impeller Fins: 7

  • Impeller Material: steel

  • Separator Tank Diameter: 20 "

  • Separator Tank Height: 10 "

  • Motor Power: 3 HP

  • Motor Phase: 1 Ph

  • Motor Voltage: 230 V

  • Prewired Voltage: 230 V

  • Motor Current: 15 A

  • Web Description: PM1900TX-CK1 Dust Collector, 3HP 1PH 230V, 2-Micron Canister Kit

  • Model Number: PM1900TX-CK1

  • Brand: Powermatic

  • Overall Dimensions: 46 x 23 x 45 (shipped), 61 x 30 x 72 (assembled)

  • Height: 45 inch

  • Width: 23 inch

  • Length: 46 inch

  • Net Weight
Interested in this item or want more information?

Hours:

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

  • TurboCone improves chip separation and collector bag packing efficiency

  • The cone eliminates premature filter clogging for sustained performance

  • Remote-controlled digital timer can be programmed for up to 99 minutes

  • All-metal duct construction for rigidity and improved air flow

  • 2-micron canister filters offer over six times filtering surface area of standard bags

  • The large impeller is powered by a 3HP motor for peak performance

  • Triple 4” dust ports allow for several hoses to be attached at the same time

  • Collection bags use a snap ring for rapid installation/removal

  • 10 cubic feet collection bag capacity reduces number of bag changes.

  • Tall filter bags require less cleaning due to the larger surface area

  • Four swivel casters for easy maneuverability

    • Additional Information

    Manufacturer: Powermatic
    For More Information on the PM1900TX-CK1 Dust Collector, 3HP 1PH 230V, 2-Micron Canister Kit, [Click Here] to Link to Manufacturer Web Site
