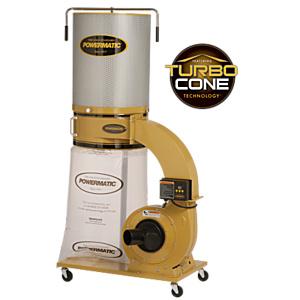

PM1300TX-CK Dust Collector, 1.75HP 1PH 115/230V, 2-Micron Canister Kit

1791079K

Powermatic

The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.

Quick Overview

  • Part Number: 1791079K

  • Trademark: TurboCone

  • Remote Control: Yes

  • Sound Rating: 75 - 90 dB

  • 1-Hose Connection Diameter: 6 "

  • 2-Hoses Connection Diameter: 4 "

  • Bag Diameter: 20 "

  • Filter Bag/Canister Length: 26 "

  • Collection Bag Capacity: 10 cubic foot

  • Collection Bag Length: 30 "

  • Air Flow @ 6": 1,064 cu.ft/min

  • Static Pressure: 11.31 inch of water

  • Particle Size (Micron): 98% of 2 micron particles: 86% of 1 micron particles

  • Velocity @ 6": 5,374 foot per minute

  • Air Inlet: (1) at 6" or (2) at 4"

  • Impeller Diameter: 12 "

  • Impeller Fins: 6

  • Impeller Material: steel

  • Separator Tank Diameter: 20 "

  • Separator Tank Height: 10 "

  • Motor Power: 1¾ HP

  • Motor Phase: 1 Ph

  • Motor Voltage: 115 / 230 V

  • Prewired Voltage: 115 V

  • Motor Current: 15 / 7.5 A

  • Web Description: PM1300TX-CK Dust Collector, 1.75HP 1PH 115/230V, 2-Micron Canister Kit

  • Model Number: PM1300TX-CK

  • Brand: Powermatic

  • Overall Dimensions: 45 x 23 x 30 (shipped), 37 x 29 x 72 (assembled)

  • Height: 30 inch

  • Width: 23 inch

  • Length: 45 inch

  • Net Weight: 154 pound
Interested in this item or want more information?

Hours:

Phone: 800-613-3873

Email: info@aaatool.net

Can't find what you want? Give us a call and we can help you find it.

Details

  • TurboCone improves chip separation and collector bag packing efficiency

  • The cone eliminates premature filter clogging for sustained performance

  • Remote-controlled digital timer can be programmed for up to 99 minutes

  • Canister filter offers over six times filtering surface area of standard bags

  • All-metal duct construction for rigidity and improved air flow

  • Dual 4" dust ports for simultaneous collection from two machines

  • 1-3/4HP motor offers plenty of power for effective air movement

  • Collection bag uses a snap ring for rapid installation and removal

  • 10 cubic feet capacity collection bag reduces number of bag changes.

  • Four swivel casters for easy maneuverabilty

    • Additional Information

    Manufacturer: Powermatic
